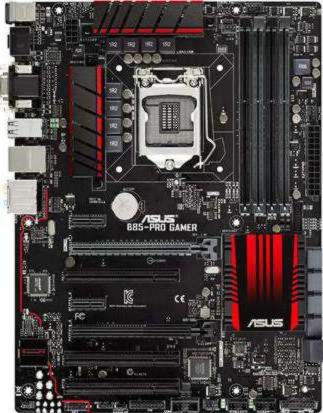

Asus B85-PRO GAMER Elite Performance Motherboard

Asus B85-PRO Motherboard – Built for Reliability, Expansion, and Performance

The Asus B85-PRO motherboard is a feature-rich ATX board designed for professionals, enthusiasts, and system builders who need exceptional stability, expandability, and intelligent features. Built on the Intel B85 chipset and supporting 4th Generation Intel Core processors (Haswell) for socket LGA1150, this board offers solid performance for business-class desktops, office workstations, and home setups that require superior durability and multitasking support.

Part of the Asus B85 series, the B85-PRO motherboard is engineered with Asus’s renowned build quality, long-term reliability, and industry-leading 5X Protection technology. With full ATX dimensions, advanced connectivity, rich BIOS features, and support for up to 32GB DDR3 memory, this board offers everything a user might need for a long-lasting and flexible desktop experience.

Key Features of Asus B85-PRO

• Supports Intel 4th Gen Core i7/i5/i3/Pentium/Celeron processors (LGA1150)

• Intel B85 Express Chipset

• Four DDR3 DIMM slots supporting up to 32GB memory

• ATX form factor for expandability and airflow

• PCIe 3.0/2.0 x16 and multiple PCIe/PCI slots for expansion

• Integrated HDMI, DVI, VGA, and DisplayPort

• 6 SATA ports (4 x SATA 6Gb/s, 2 x SATA 3Gb/s)

• USB 3.0 Boost with UASP support

• ASUS 5X Protection for long-term durability

• AI Suite 3 – one-stop system tuning and monitoring

Performance and Processor Compatibility

The Asus B85-PRO motherboard is compatible with Intel’s 4th Generation Core processors, which include the i7, i5, i3, Pentium, and Celeron families. These processors are based on the 22nm Haswell architecture and offer substantial performance improvements over previous generations.

The LGA1150 socket ensures high compatibility, and the Intel B85 chipset delivers essential business features such as Intel SBA (Small Business Advantage), Intel Rapid Storage Technology, and full USB 3.0 and SATA 6Gbps support. Whether you’re building a mid-range gaming system or a professional desktop for daily productivity, this board delivers efficiency and responsive computing.

ATX Form Factor for Maximum Expansion

Designed in the ATX form factor, the Asus B85-PRO offers enhanced airflow, better component spacing, and plenty of room for upgrades. With multiple expansion slots including:

• 1 x PCIe 3.0/2.0 x16 slot (for GPU)

• 1 x PCIe 2.0 x16 slot (x4 mode)

• 2 x PCIe 2.0 x1 slots

• 3 x PCI slots

This layout provides ample flexibility for adding dedicated graphics cards, sound cards, networking cards, or RAID controllers. It’s ideal for users who want to expand their systems as their needs grow.

Memory Support – Up to 32GB DDR3

The B85-PRO motherboard comes equipped with 4 x DIMM slots that support up to 32GB of DDR3 memory, compatible with speeds of 1600/1333 MHz. This makes it suitable for heavy multitasking environments, where running multiple applications simultaneously is essential. Additionally, Asus implements memory compatibility checks through their QVL (Qualified Vendor List), ensuring the board functions seamlessly with a wide variety of RAM modules.

Storage Capabilities – Fast and Flexible

The Asus B85-PRO supports a total of 6 SATA ports:

• 4 x SATA 6Gb/s ports for fast SSDs and modern hard drives

• 2 x SATA 3Gb/s ports for legacy drives

This configuration provides flexibility for users to build high-capacity storage arrays or boot systems off fast SSDs, ensuring rapid data access, faster OS loading, and improved application performance. This makes it ideal for both professional applications and home media centers.

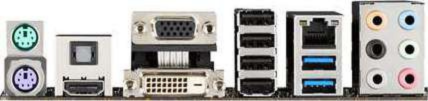

Integrated Graphics and Multi-Display Support

For users relying on Intel’s integrated graphics, the Asus B85-PRO supports output through multiple interfaces:

• HDMI

• DisplayPort

• DVI-D

• VGA (D-Sub)

This allows support for triple-monitor setups, which is particularly useful in professional environments where multitasking across screens is necessary. Integrated graphics support also makes the board a viable choice for office PCs, media servers, or entry-level gaming setups where discrete graphics are not a priority.

USB 3.0 and USB 2.0 Connectivity

The B85-PRO motherboard offers:

• 4 x USB 3.0 ports (2 rear, 2 via header)

• 10 x USB 2.0 ports (6 rear, 4 via header)

With USB 3.0 Boost and UASP support, the Asus B85-PRO significantly improves data transfer speeds over traditional USB 3.0 protocols. UASP (USB Attached SCSI Protocol) allows faster file transfers when using compatible storage devices, making this motherboard excellent for external backups, data migration, and high-speed file operations.

Network Connectivity and LAN Features

The board is equipped with a Realtek 8111GR Gigabit LAN controller, offering stable and high-speed network performance for online gaming, streaming, file transfers, and general web use. Features like network iControl and bandwidth management further enhance user experience by allowing priority settings for specific applications.

Audio Output and Realtek Codec

Asus uses the Realtek ALC892 8-channel HD audio codec, delivering clear and high-quality sound for general use, media playback, or voice communications. While it may not cater to audiophile-level demands, it offers reliable onboard audio with support for surround sound setups and front panel audio.

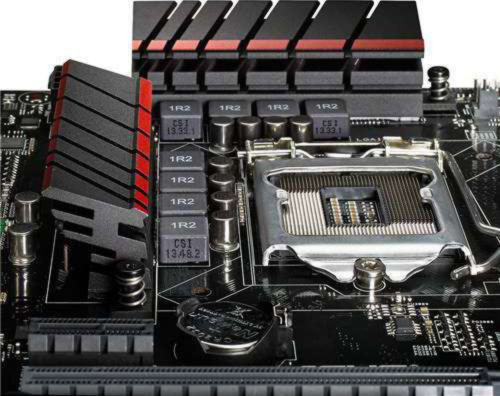

ASUS 5X Protection – Enhanced Reliability and Longevity

As part of the Asus B85 series, the B85-PRO includes 5X Protection, which includes:

1. DIGI+ VRM: Ensures precise power delivery to the CPU.

2. DRAM Overcurrent Protection: Prevents damage from short circuits.

3. ESD Guards: Protect against electrostatic discharge.

4. High-Quality Solid Capacitors: Long lifespan and thermal endurance.

5. Stainless Steel I/O Back Panel: Resistant to corrosion, lasting up to 3 times longer than standard panels.

These protections make the motherboard highly durable, which is essential for continuous operation in business, academic, and home environments.

ASUS AI Suite 3 – All-in-One Tuning Utility

The AI Suite 3 software package from Asus provides users with a unified dashboard for monitoring system performance, controlling fan speeds, adjusting power profiles, and more. With its intuitive interface, users can access:

• Fan Xpert for temperature-based fan control

• USB 3.0 Boost

• Energy Saving settings

• System information

This allows novice and experienced users alike to fine-tune their systems to suit performance or energy-efficiency needs.

UEFI BIOS – Easy and Advanced Modes

The Asus B85-PRO comes with the UEFI BIOS interface, offering two operating modes:

• EZ Mode: Simplified interface for basic setup

• Advanced Mode: Full access to performance tuning, overclocking, and hardware monitoring

UEFI BIOS also includes features like secure boot, Q-Fan control, and BIOS Flashback support, ensuring stability, safety, and convenience when managing system configurations.

Ideal Use Cases for Asus B85-PRO

The Asus B85-PRO motherboard is suited for:

• Professional Office Workstations: Supports stable productivity applications.

• Educational Institutions: Ideal for labs and school PCs.

• Media and Content Creation PCs: Good support for storage and multitasking.

• Entry-Level Gaming: When paired with a compatible GPU, it can handle moderate gaming.

• Home Server Builds: Excellent for network-attached storage and low-power setups.

• Legacy System Upgrades: Those wanting to maintain or upgrade older systems with 4th Gen Intel CPUs.

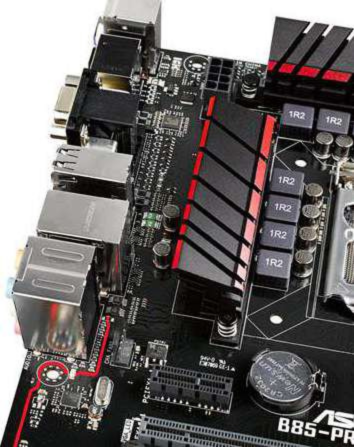

Build Quality and Heat Dissipation

The B85-PRO’s premium PCB construction and inclusion of heat sinks on the VRM and chipset areas allow for consistent performance even under continuous workloads. While it lacks the more aggressive thermal solutions of gaming boards, it maintains optimal thermal performance in typical office and workstation environments.

Asus B85-PRO Price in Pakistan

The Asus B85-PRO price in Pakistan can vary depending on stock availability and location. As the B85 platform becomes harder to find in brand-new condition, most units available in Pakistan may be used, refurbished, or pulled from branded systems, often priced more affordably than newer motherboards.

Despite its older chipset, the B85-PRO still sees strong demand due to its support for popular LGA1150 processors like the Intel Core i5-4570, i7-4770, and similar Haswell CPUs. If you are looking for a dependable motherboard in Pakistan to pair with a 4th Gen Intel CPU, this board remains a competitive choice.

Conclusion

The Asus B85-PRO motherboard is a tried-and-tested platform for Intel’s 4th Gen Core processors. Offering a strong mix of performance, connectivity, expansion options, and durability, it continues to serve as a reliable foundation for professional systems, workstations, and even home use.

Key highlights like ASUS 5X Protection, USB 3.0 Boost, multiple display output options, and full ATX layout make it an excellent choice for builders looking for a mature and well-supported platform. Even today, in the used market, the Asus B85-PRO motherboard offers excellent value and performance, especially when paired with affordable Haswell CPUs.

If you’re in search of a stable, business-ready motherboard with proven dependability, the Asus B85-PRO remains a solid investment, especially in Pakistan’s competitive PC hardware landscape.
